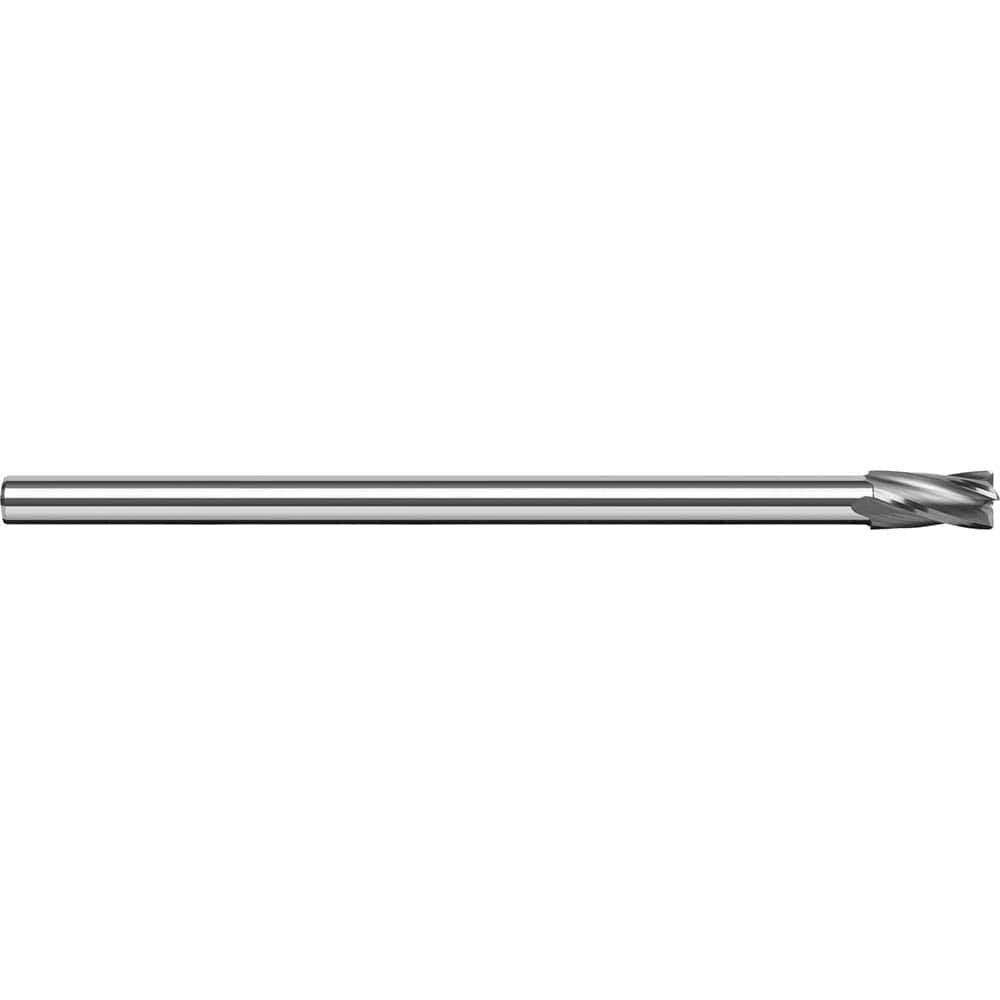

Corner Radius End Mill: 3/4″ Dia, 1-1/8″ LOC, 0.03″ Radius, 4 Flutes, Solid Carbide 6″ OAL, 5/8″ Shank Dia, 30 ° Helix, Bright/Uncoated, Corner Radius End
Item #: 05467261
Brand: Harvey Tool
Model #: 17648
Product Specifications
| Mill Diameter (Decimal Inch) | 0.7500 |
| Mill Diameter (Inch) | 3/4 |
| Length of Cut (Inch) | 1-1/8 |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 30 |
| Shank Type | Reduced |
| Variable Helix | No |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | End Mills - Corner Radius - Reduced Shank |
| Single Or Double End | Single |
| Coating/Finish | Bright/Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.1250 |
