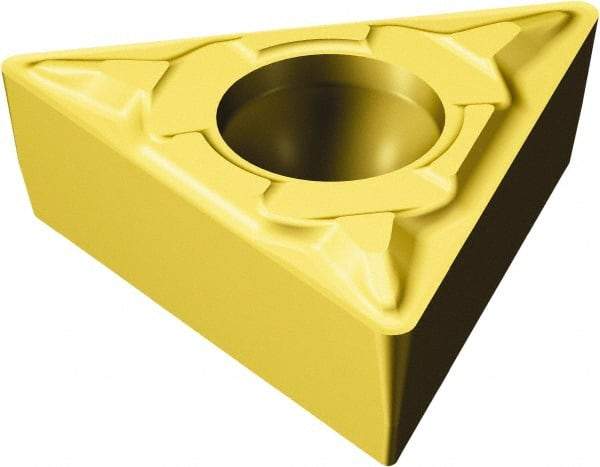

Sandvik Coromant - TPMT1.21.21 MF Grade 2015 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 5/32" Inscr Circle, 5/64" Thick, 1/64" Corner Radius
Item #: 05463732
Brand: Sandvik Coromant
Model #: 5755268
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Insert Size | 1.21.21 |
| Material | Carbide |
| Length (mm) | 6.60 |
| Length (Decimal Inch) | 0.2598 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 5/64 |
| Thickness (Decimal Inch) | 0.0780 |
| Thickness (mm) | 1.98 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Manufacturer's Grade | 2015 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | MF |
| Hole Diameter (mm) | 2.20 |
| Hole Diameter (Decimal Inch) | 0.0866 |
| ISO Number | TPMT06T104MF2015 |
| Relief Angle | 11 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5755268 |
| Primary Workpiece Material | M |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 111 |
| Maximum Depth of Cut (mm) | 6.20 |
| Maximum Depth of Cut (Decimal Inch) | 0.2441 |
| Insert Holding Method | Screw |
| Shape | Triangle |
