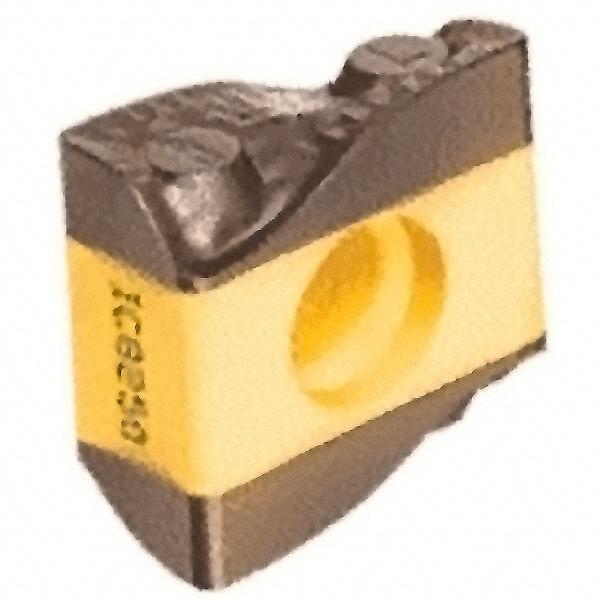

Iscar - LNMX221016 HT Grade IC9250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 90° Rectangle, 20mm Thick, 1/16" Corner Radius
Item #: 05452552
Brand: Iscar
Model #: 5506929
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LNMX |
| Insert Size | 221016 |
| Material | Carbide |
| Length (mm) | 22.00 |
| Length (Decimal Inch) | 0.8661 |
| Thickness (Decimal Inch) | 0.7874 |
| Thickness (mm) | 20.00 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IC9250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | HT |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Cutting Direction | Left Hand |
| Series | Heliturn |
| Insert Holding Method | Screw |
| Shape | Rectangle |
