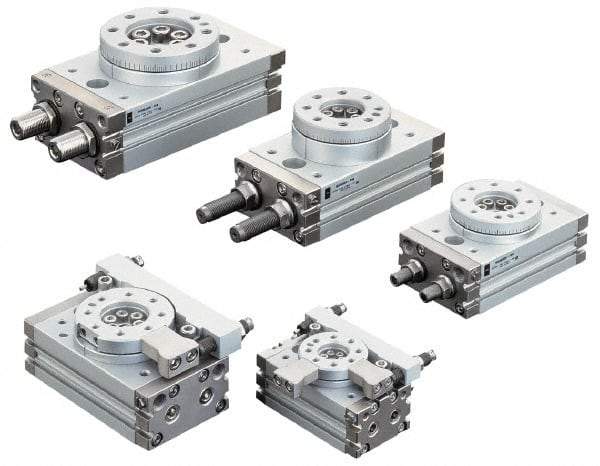

SMC PNEUMATICS - 90mm Table Diam x 28mm Piston Diam Rotary Actuator Table - 14 to 145 psi, 74.86 LBF Radial Load, 66.54 LBS Thrust Load Up, 107.01 LBS Thrust Load Down, 1/8" NPT Port, 170mm Long x 92mm Wide x 53mm High
Item #: 05445556
Brand: SMC PNEUMATICS
Model #: MSQB70A-XN
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pneumatic Rotary Table Type | Rack & Pinion Type |
| Switch Type | Auto |
| Allowable Movement | 12.0000 |
| Diameter (mm) | 90.0000 |
| Height (mm) | 53.0000 |
| Length (mm) | 170.00 |
| Width (mm) | 92.00 |
| Minimum Working Pressure (psi) | 14.0 |
| Maximum Working Pressure (psi) | 145 |
| Piston Diameter (mm) | 28.000 |
| Port Size | 1/8 NPT |
| Radial Load | 74.86 |
| Thrust Load Up Lbs (Pounds) | 66.54 |
| Thrust Load Down Lbs (Pounds) | 107.01 |
| Angle of Rotation | 0-190 |
