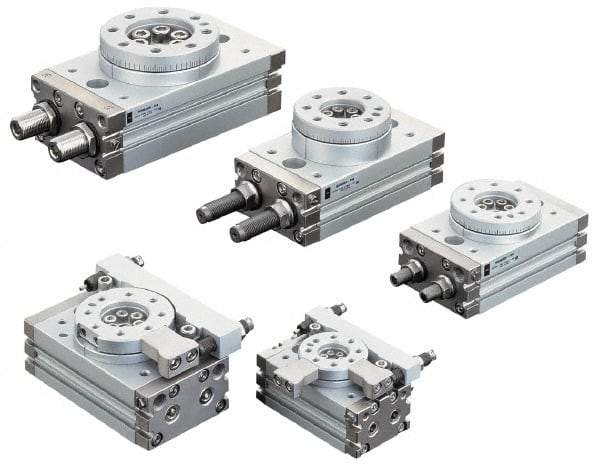

SMC PNEUMATICS - 100mm Table Diam x 32mm Piston Diam Rotary Actuator Table - 14 to 145 psi, 87.68 LBF Radial Load, 110.83 LBS Thrust Load Up, 159.16 LBS Thrust Load Down, 1/8" NPT Port, 189mm Long x 102mm Wide x 59mm High
Item #: 05445515
Brand: SMC PNEUMATICS
Model #: MSQB100A-XN
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pneumatic Rotary Table Type | Rack & Pinion Type |
| Switch Type | Auto |
| Allowable Movement | 18.0000 |
| Diameter (mm) | 100.0000 |
| Height (mm) | 59.0000 |
| Length (mm) | 189.00 |
| Width (mm) | 102.00 |
| Minimum Working Pressure (psi) | 14.0 |
| Maximum Working Pressure (psi) | 145 |
| Piston Diameter (mm) | 32.000 |
| Port Size | 1/8 NPT |
| Radial Load | 87.68 |
| Thrust Load Up Lbs (Pounds) | 110.83 |
| Thrust Load Down Lbs (Pounds) | 159.16 |
| Angle of Rotation | 0-190 |
