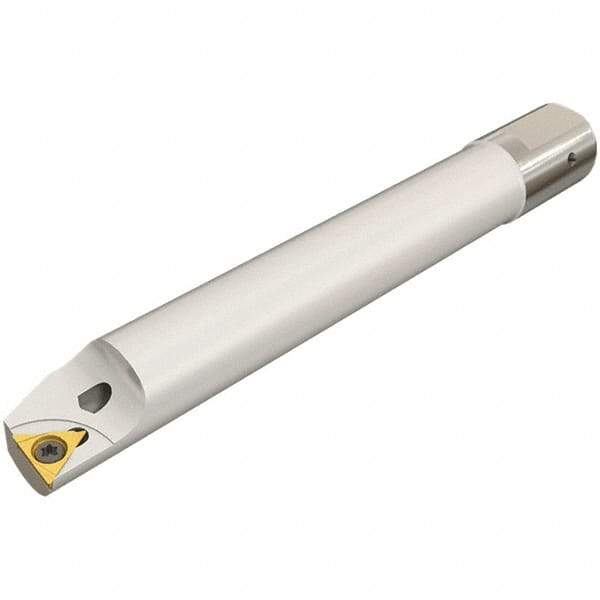

Iscar - 8mm Min Bore Diam, 70mm OAL, 16mm Shank Diam, IHAXF Indexable Boring Bar - 48mm Max Bore Depth, WCGT 0201.. Insert
Item #: 05433420
Brand: Iscar
Model #: 4550627
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | IHAXF |
| Series | Itsbore |
| Minimum Bore Diameter (mm) | 8.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.3150 |
| Maximum Bore Depth (mm) | 48.00 |
| Maximum Bore Depth (Decimal Inch) | 1.8898 |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | WCGT 0201.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Maximum Bore Diameter (mm) | 10.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.3937 |
| Complete Insert Compatibility | WCGT 020102L; WCGT 020104L |
| Toolholder Material | Heavy Metal |
