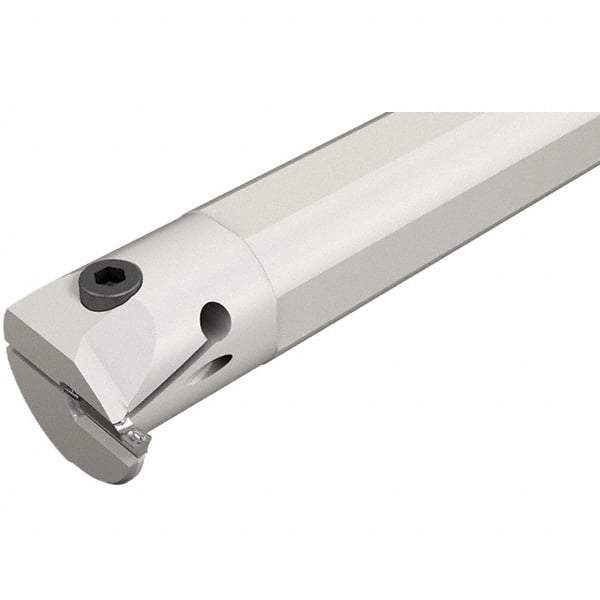

Iscar - HELII, Internal, Right Hand, 5mm Max Depth of Cut, 3 to 3.18mm Groove Width, Indexable Grooving Tool Holder - GRIP 3.. Insert Compatibility, 20mm Shank Width, 160mm OAL, Through Coolant
Item #: 05433263
Brand: Iscar
Model #: 2500531
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 5.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.18 |
| Maximum Groove Width (Decimal Inch) | 0.1252 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Toolholder Style | HELII |
| Insert Compatibility | GRIP 3.. |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Series | Heli-Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 26.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.0236 |
| Center to Cutting Edge (mm) | 15.20 |
| Center to Cutting Edge (Decimal Inch) | 0.5984 |
| Complete Insert Compatibility | GRIP 3002Y; GRIP 3003Y; GRIP 3015Y; GRIP 318-040Y; GRIP 318-159Y |
