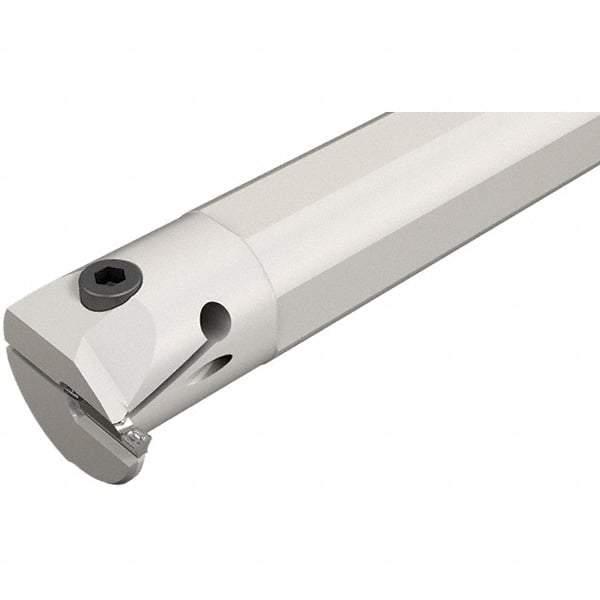

Iscar - HELII, Internal, Right Hand, 12mm Max Depth of Cut, 5 to 5mm Groove Width, Indexable Grooving Tool Holder - GRIP 5.. Insert Compatibility, 40mm Shank Width, 250mm OAL, Through Coolant
Item #: 05433206
Brand: Iscar
Model #: 2500472
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Toolholder Style | HELII |
| Insert Compatibility | GRIP 5.. |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Series | Heli-Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 53.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.0866 |
| Center to Cutting Edge (mm) | 32.20 |
| Center to Cutting Edge (Decimal Inch) | 1.2677 |
| Complete Insert Compatibility | GRIP 5005Y; GRIP 5008Y; GRIP 5025Y |
