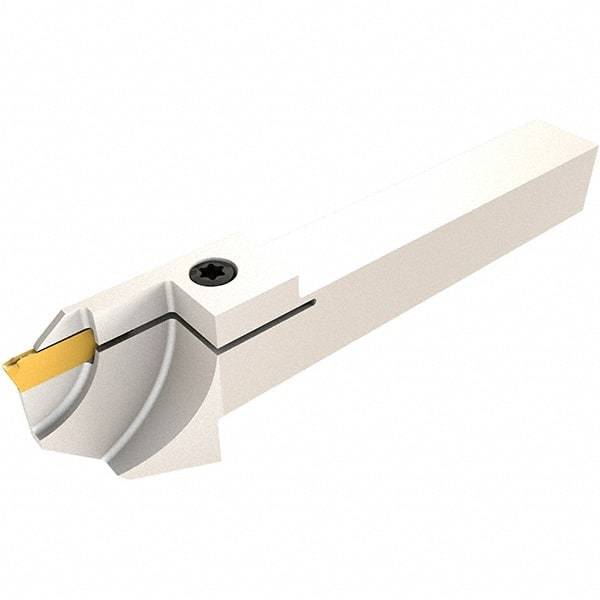

Iscar - External Thread, 0.3937" Max Depth of Cut, 1mm Min Groove Width, 95mm OAL, Right Hand Indexable Grooving Cutoff Toolholder - 12mm Shank Height x 12mm Shank Width, DG.. Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 05421433
Brand: Iscar
Model #: 2301591
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Minimum Groove Width (Decimal Inch) | 0.0394 |
| Minimum Groove Width (mm) | 1.00 |
| Maximum Groove Width (Decimal Inch) | 0.0591 |
| Maximum Groove Width (mm) | 1.50 |
| Overall Length (Decimal Inch) | 3.7402 |
| Overall Length (mm) | 95.00 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DG.. |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4449 |
| Head Height (mm) | 23.70 |
| Head Height (Decimal Inch) | 0.9331 |
| Complete Insert Compatibility | DGL 1001J-8D; DGN 1000P; DGN 1002J; DGN 1500P; DGN 1502J; DGR 1000P-15D; DGR 1000P-6D; DGR 1001J-8D; DGR 1500J-8D; DGR 1500P-15D; DGR 1500P-6D |
