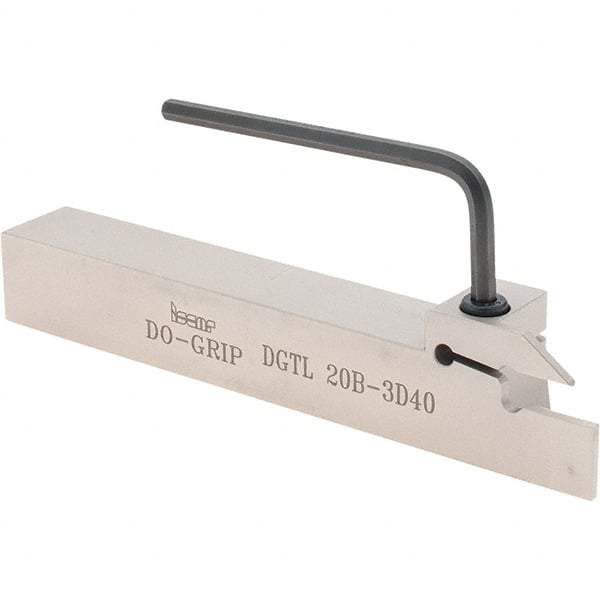

Iscar - External Thread, 0.3937" Max Depth of Cut, 3mm Min Groove Width, 140mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 20mm Shank Height x 20mm Shank Width, DGN Insert Style, DGT Toolholder Style, Series Do-Grip
Item #: 05414321
Brand: Iscar
Model #: 2301401
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (Decimal Inch) | 0.1252 |
| Maximum Groove Width (mm) | 3.18 |
| Overall Length (Decimal Inch) | 5.5118 |
| Overall Length (mm) | 140.00 |
| Series | Do-Grip |
| Toolholder Style | DGT |
| Insert Compatibility | DGN |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Shank Width/Diameter (mm) | 20.00 |
| Shank Width/Diameter (Decimal Inch) | 0.7874 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7402 |
| Complete Insert Compatibility | DGN 3000P; DGN 3002Z; DGN 3003UA; DGN 3003UT; DGN 3100JS; DGN 3102C; DGN 3102J; DGN 3102JT; DGN 3202J; DGNC 3102C; DGNM 3202C; DGNM 3202J |
