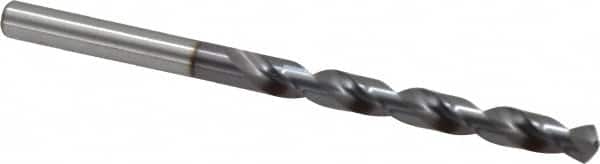

Jobber Length Drill Bit: 0.2323″ Dia, 120 °, Vanadium High Speed Steel TiCN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 05410089
Brand: OSG
Model #: 8594059
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2323 |
| Drill Bit Size (mm) | 5.90 |
| Drill Bit Material | Vanadium High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiCN |
| Drill Point Angle (Degrees) | 120 |
| Spiral Type | Fast |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Overall Length (mm) | 93.00 |
| Flute Length (mm) | 57.00 |
| Shank Diameter (mm) | 5.90 |
| Web Thinning | X-Thinned |
| Web Configuration | Tapered |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
