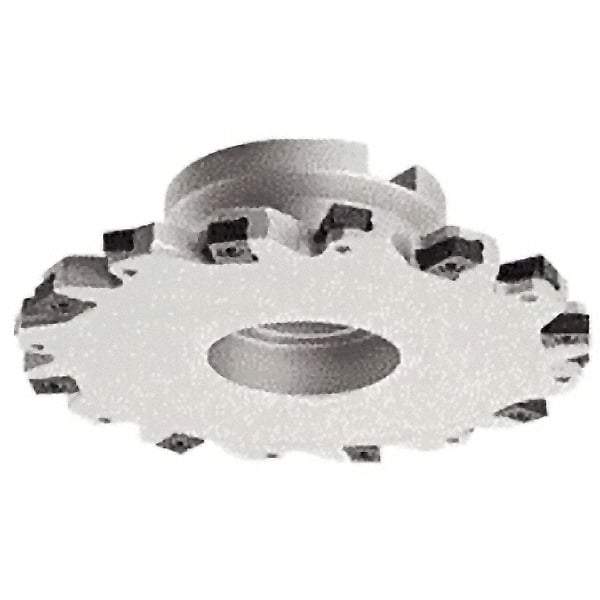

Iscar - Shell Mount B Connection, 1.3583" Depth of Cut, 125mm Cutter Diam, 1.2598" Hole Diam, 12 Tooth Indexable Slotting Cutter - FDN-LN12 Toolholder, LNET Insert
Item #: 05353784
Brand: Iscar
Model #: 3102984
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Maximum Depth of Cut (mm) | 34.50 |
| Maximum Depth of Cut (Decimal Inch) | 1.3583 |
| Cutter Diameter (mm) | 125.00 |
| Cutter Diameter (Decimal Inch) | 4.9213 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 12 |
| Toolholder Style | FDN-LN12 |
| Series | TangSlot(FDN-LN12) |
| Insert Style | LNET |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.2756 |
| Maximum Cutting Width (Decimal Inch) | 0.3346 |
| Maximum Cutting Width (mm) | 8.50 |
| Hub Diameter (mm) | 65.00 |
| Hub Diameter (Decimal Inch) | 2.5591 |
