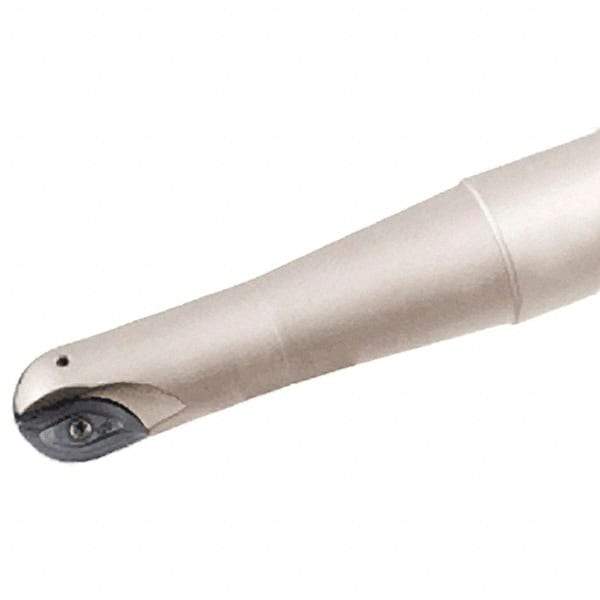

Iscar - 32mm Cut Diam, 27mm Max Depth of Cut, 32mm Shank Diam, 160mm OAL, Indexable Ball Nose End Mill - 65mm Head Length, Straight Shank, BCM Toolholder, BCR... Insert
Item #: 05353008
Brand: Iscar
Model #: 3102362
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 27.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0630 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | BCR... |
| Toolholder Style | BCM |
| Series | DropMill |
| Overall Length (mm) | 160.00 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Tapered Neck | Yes |
| Number of Flutes | 2 |
| Head Length (mm) | 65.00 |
| Head Length (Decimal Inch) | 2.5591 |
