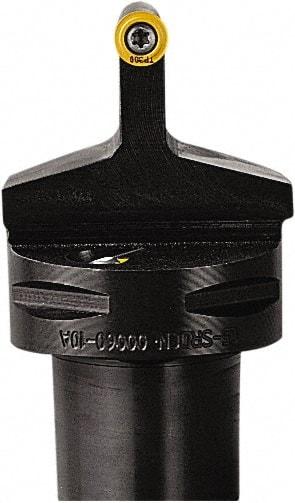

Seco - Neutral Cut, Size C6, RCMT 1606 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 7.87mm Ctr to Cutting Edge, 65.02mm Head Length, Series Seco-Capto
Item #: 05345681
Brand: Seco
Model #: 59781
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Seco-Capto |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 65.02 |
| Head Length/Projection (Decimal Inch) | 2.5600 |
| Insert Style | RCMT 1606 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 7.87 |
| Center to Cutting Edge (Decimal Inch) | 0.3100 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | 0 |
| Neck Diameter (mm) | 62.99 |
| Neck Diameter (Decimal Inch) | 2.4800 |
| Complete Insert Compatibility | RCMT 1606M0-F1; RCMT 1606M0-F2; RCMT 1606M0-M3 |
