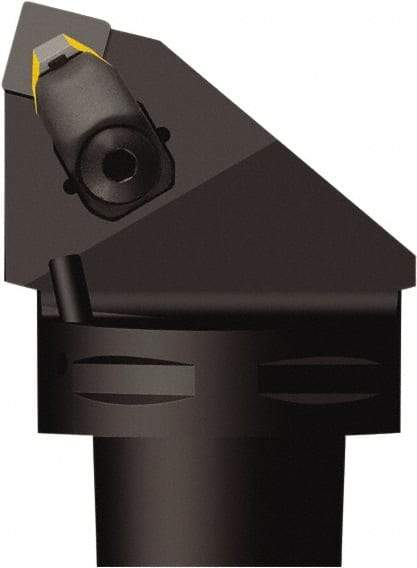

Seco - Left Hand Cut, Size C5, SNMN 322 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 26.92mm Ctr to Cutting Edge, 59.94mm Head Length, Series Seco-Capto
Item #: 05345632
Brand: Seco
Model #: 51528
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | Seco-Capto |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 59.94 |
| Head Length/Projection (Decimal Inch) | 2.3600 |
| Insert Style | SNMN 322 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 26.92 |
| Center to Cutting Edge (Decimal Inch) | 1.0600 |
| Insert Holding Method | Clamp |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -6 |
| Neck Diameter (mm) | 50.04 |
| Neck Diameter (Decimal Inch) | 1.9700 |
| Complete Insert Compatibility | SNMN 322E; SNMN 322S; SNMN 322S-WZ; SNMN 322S-WZ-85 |
