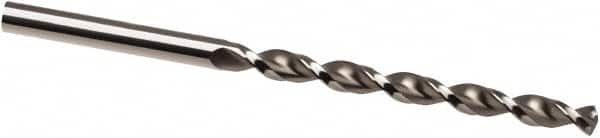

Taper Length Drill Bit: 0.1181″ Dia, 130 ° Bright/Uncoated, RH Cut, Parabolic Flute, Cylindrical Shank, Series 501
Item #: 05323837
Brand: Guhring
Model #: 9005010030000
Product Specifications
| Drill Bit Size (mm) | 3.00 |
| Tool Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Flute Length (mm) | 66.00 |
| Shank Type | Cylindrical |
| Point Type | Cone Relief |
| Flute Type | Parabolic |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 130 |
| Overall Length (mm) | 100.00 |
| Shank Diameter (mm) | 3.00 |
| Drill Bit Size (Decimal Inch) | 0.1181 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 501 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 2.4210 |
| Maximum Drilling Depth (mm) | 61.50 |
| Shank Length (mm) | 34.00 |
| Drill Bit Diameter Tolerance | h8 |
| Tool Performance | General Purpose |
| Web Thinning | Web-Thinned |
| Threaded Shank | No |
| Standards | DIN 340 |
| Spiral Type | Regular |
| Material Grade | M-2 |
