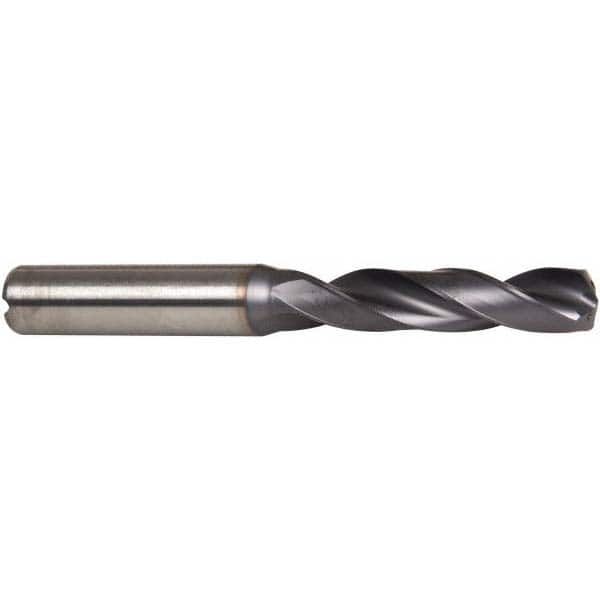

Screw Machine Length Drill Bit: 0.4062″ Dia, 140 °, Solid Carbide Multilayer TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series B976
Item #: 05276365
Brand: Kennametal
Model #: 2649376
Product Specifications
| Drill Bit Size (Inch) | 13/32 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multilayer TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Drill Bit Size (Decimal Inch) | 0.4062 |
| Overall Length (Decimal Inch) | 4.0157 |
| Shank Diameter (mm) | 12.00 |
| Series | B976 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Maximum Drilling Depth (Decimal Inch) | 1.5750 |
| Shank Length (Decimal Inch) | 1.7717 |
| Drill Point Length (mm) | 1.75 |
| Drill Point Length (Decimal Inch) | 0.0690 |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Flute Length (Decimal Inch) | 2.1654 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
