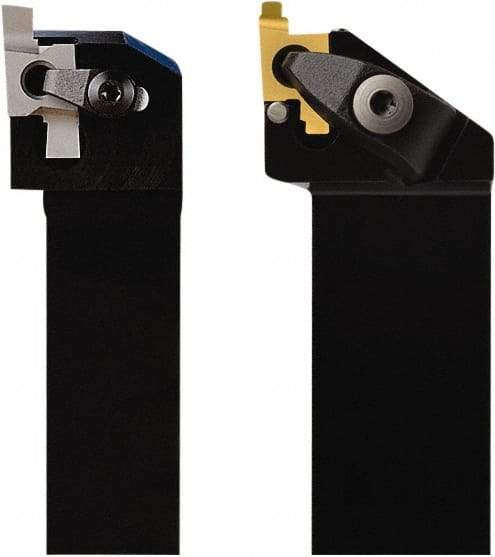

Seco - CE, External, Left Hand, 2.65mm Max Depth of Cut, 1.15 to 2.65mm Groove Width, Indexable Grooving Tool Holder - 10EL Insert Compatibility, 11.99mm Shank Height, 11.99mm Shank Width, 149.99mm OAL
Item #: 05246707
Brand: Seco
Model #: 12601
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1043 |
| Maximum Depth of Cut (mm) | 2.65 |
| Minimum Groove Width (Decimal Inch) | 0.0453 |
| Minimum Groove Width (mm) | 1.15 |
| Maximum Groove Width (mm) | 2.65 |
| Maximum Groove Width (Decimal Inch) | 0.1043 |
| Overall Length (mm) | 149.99 |
| Overall Length (Decimal Inch) | 5.9050 |
| Toolholder Style | CE |
| Insert Compatibility | 10EL |
| Shank Height (mm) | 11.99 |
| Shank Height (Decimal Inch) | 0.4720 |
| Shank Width/Diameter (mm) | 11.99 |
| Shank Width/Diameter (Decimal Inch) | 0.4720 |
| Series | Snap Tap |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 16.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.6300 |
| Head Length (mm) | 22.00 |
| Head Length (Decimal Inch) | 0.8660 |
| Complete Insert Compatibility | 10EL 0.50FD; 10EL 0.80FD; 10EL 1.00FD; 10EL 1.15FG; 10EL 1.35FG; 10EL 1.65FG; 10EL 1.9FG; 10EL 2.15FG; 10EL 2.65FG |
