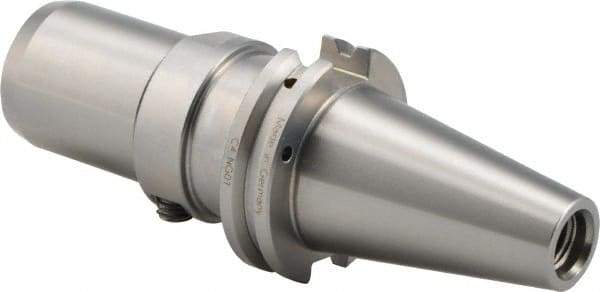

Kennametal - CAT40 Taper Shank, 3/4" Hole Diam, Hydraulic Tool Holder/Chuck - 41.66mm Nose Diam, 101.6mm Projection, 1.61" Clamp Depth, 15,000 RPM, Through Coolant
Item #: 05217963
Brand: Kennametal
Model #: 1605105
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Hole Diameter (mm) | 19.05 |
| Nose Diameter (Decimal Inch) | 1.6400 |
| Nose Diameter (mm) | 41.66 |
| Projection (Decimal Inch) | 4.0000 |
| Projection (mm) | 101.60 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 1.6100 |
| Overall Length (mm) | 169.85 |
| Overall Length (Decimal Inch) | 6.6870 |
| Balanced to (RPM) | 15000 |
