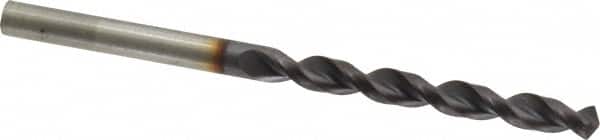

Jobber Length Drill Bit: 0.2031″ Dia, 130 °, Powdered Metal FIREX Finish, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 530
Item #: 05200837
Brand: Guhring
Model #: 9005300051600
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.2031 |
| Drill Bit Size (Inch) | 13/64 |
| Drill Bit Material | Powdered Metal |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | FIREX? |
| Drill Point Angle (Degrees) | 130 |
| Flute Type | Parabolic |
| Point Type | Cone Relief |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Flute Length (Inch) | 2-1/16 |
| Overall Length (Inch) | 3-3/8 |
| Series | 530 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 13/64 |
| Maximum Drilling Depth (Decimal Inch) | 1.7430 |
| Maximum Drilling Depth (mm) | 44.26 |
| Shank Length (mm) | 34.00 |
| Drill Bit Diameter Tolerance | -0.018 to 0.000 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Standards | DIN 338 |
| Specification Number | DIN 338 |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Material Grade | PM-ASP-60 |
| Specification Designation | DIN |
