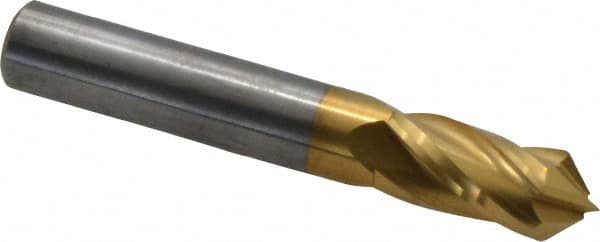

Value Collection - 3/8" Diam, 7/8" LOC, 4 Flute, 90° Point Angle, Solid Carbide Drill Mill - TiN Finish, 2-1/2" OAL, 3/8" Shank Diam
Item #: 05187539
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on nonferrous materials, plastics and other tough-to-machine materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Length of Cut (Inch) | 7/8 |
| Length of Cut (Decimal Inch) | 0.8750 |
| Point Angle | 90 |
| Number of Flutes | 4 |
| Finish/Coating | TiN |
| Overall Length (Inch) | 2-1/2 |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.002 |
