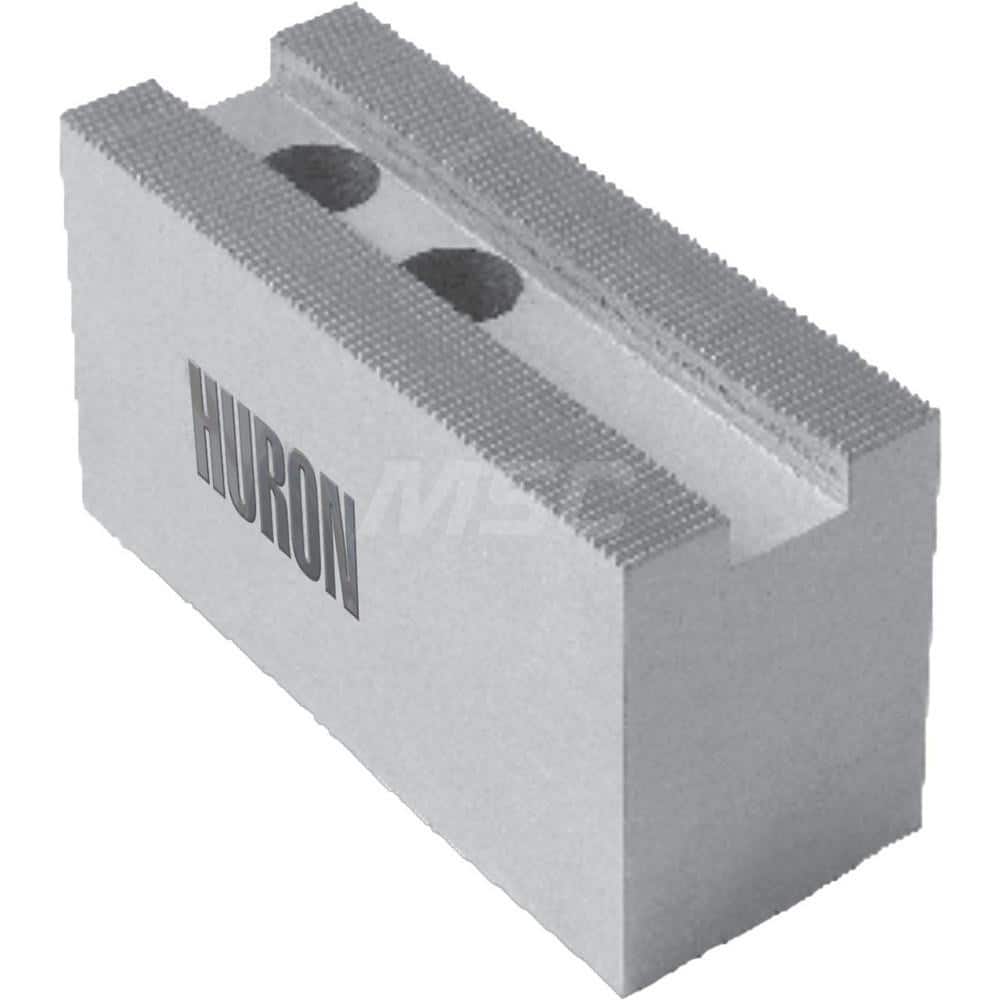

Huron Machine Products - Soft Lathe Chuck Jaws; Jaw Type: Square ; Material: 1018 Steel ; Jaw Interface Type: 1.5mm x 60? Serrated ; Maximum Compatible Chuck Diameter (Inch): 8 ; Minimum Compatible Chuck Diameter (Inch): 1 ; Overall Height (Inch): 2
Item #: 05122197
Brand: Huron Machine Products
Model #: KT8
Product Specifications
Soft Lathe Chuck Jaws; Jaw Type: Square ; Material: 1018 Steel ; Jaw Interface Type: 1.5mm x 60? Serrated ; Maximum Compatible Chuck Diameter (Inch): 8 ; Minimum Compatible Chuck Diameter (Inch): 1 ; Overall Height (Inch): 2
| Jaw Type | Square |
| Material | 1018 Steel |
| Jaw Interface Type | 1.5mm x 60? Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 8 |
| Minimum Compatible Chuck Diameter (Inch) | 1 |
| Overall Height (Inch) | 2 |
| Groove Width (Decimal Inch) | 0.5500 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.0000 |
| Jaw End Shape | Flat |
| Fastener Size (mm) | M12 |
| Number of Jaws | 1 |
| Overall Width/Diameter (Inch) | 1-1/2 |
| Overall Length (Inch) | 3-3/4 |
