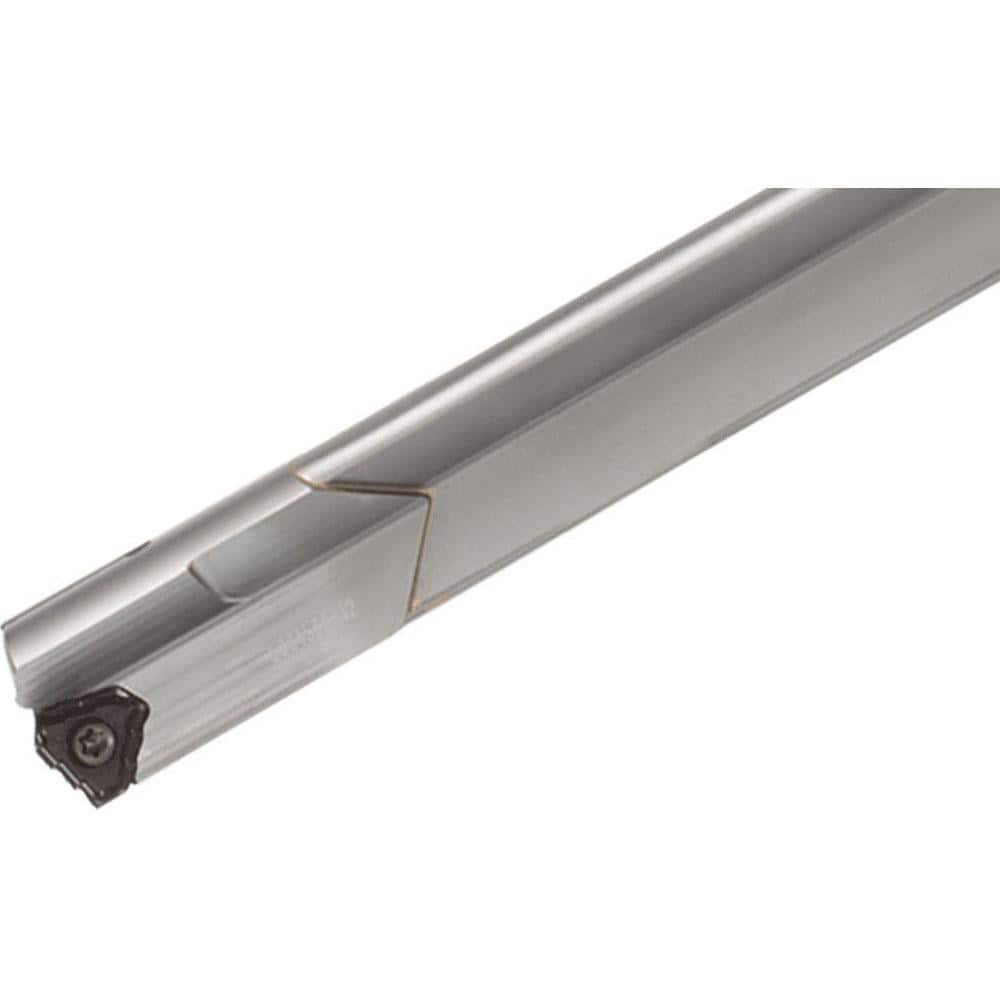

Indexable Insert Drills; Drill Style: TRLG; Maximum Drill Diameter (Inch): 17/32; Maximum Drill Diameter (Decimal Inch): 0.5311; Maximum Drill Depth (Decimal Inch): 44.5200; Shank Type: Whistle Notch; Shank Diameter (Inch): 1; Shank Diameter (Decimal Inch
Item #: 05102736
Brand: Tungaloy
Model #: 4853433
Product Specifications
| Drill Style | TRLG |
| Maximum Drill Diameter (Inch) | 17/32 |
| Maximum Drill Diameter (Decimal Inch) | 0.5311 |
| Maximum Drill Depth (Decimal Inch) | 44.5200 |
| Shank Type | Whistle Notch |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Drill Inserts | 1 |
| Drill Diameter Range (Decimal Inch) | 0.0000 to 0.7500 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 10.0000+ |
| Tool Material | Steel |
| Compatible Insert Style | LOGT |
| Compatible Insert Size Code | 06 |
| Drill Depth by Diameter Ratio | 84xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 48.06 |
| Overall Length (Inch) | 48-1/16 |
| Series | TRLG |
| Shank Length (Decimal Inch) | 2.7560 |
| Minimum Achievable Hole Tolerance | 0.0020 in |
| Maximum Achievable Hole Tolerance | 0.0040 in |
| Tool Application | Drilling |
| Coolant Through | Yes |
