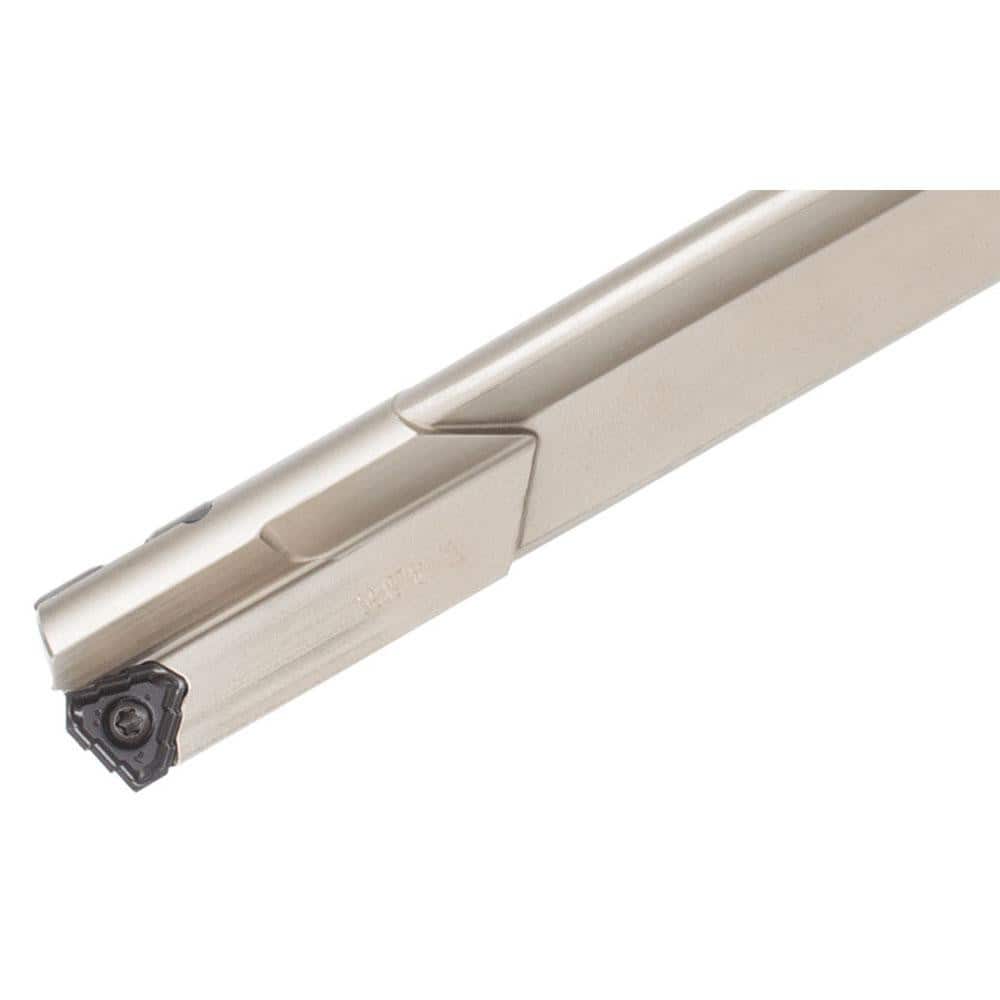

Indexable Insert Drills; Drill Style: MCTR; Maximum Drill Diameter (mm): 12.50; Maximum Drill Depth (mm): 196.80; Shank Type: Flatted; Shank Diameter (Inch): 20; Shank Diameter (mm): 20.00; Number of Drill Inserts: 1; Cutting Direction: Right Hand; Maximu
Item #: 05101753
Brand: Tungaloy
Model #: 4848050
Product Specifications
| Drill Style | MCTR |
| Maximum Drill Diameter (mm) | 12.50 |
| Maximum Drill Depth (mm) | 196.80 |
| Shank Type | Flatted |
| Shank Diameter (Inch) | 20 |
| Shank Diameter (mm) | 20.00 |
| Number of Drill Inserts | 1 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (mm) | 150.00 to 200.00 |
| Tool Material | Steel |
| Compatible Insert Style | LOGT |
| Compatible Insert Size Code | 06 |
| Drill Depth by Diameter Ratio | 15xD |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Overall Length (mm) | 277.80 |
| Series | MCTR |
| Body Length | 226.00 |
| Shank Length (mm) | 50.00 |
| Minimum Achievable Hole Tolerance | 0.0020 in |
| Maximum Achievable Hole Tolerance | 0.0040 in |
| Tool Application | Drilling |
| Coolant Through | Yes |
