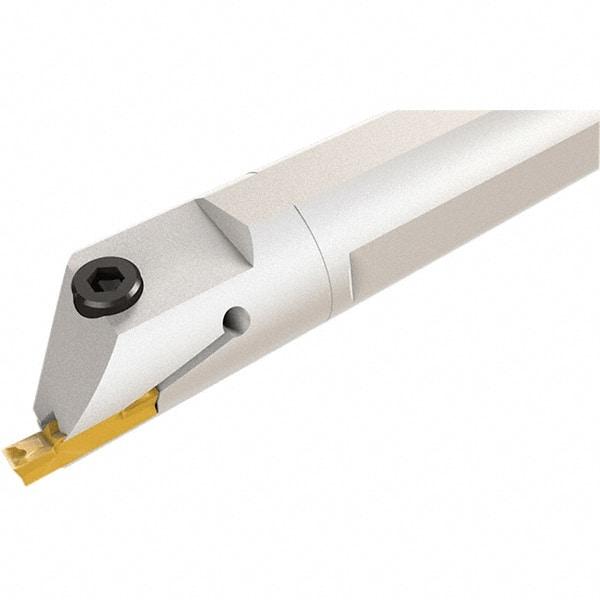

Iscar - 20mm Min Bore Diam, 200mm OAL, 25mm Shank Diam, HFI-MC Indexable Boring Bar - DGN, GRIP, HFPR Insert
Item #: 04942116
Brand: Iscar
Model #: 2500337
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | HFI-MC |
| Series | Heliface |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | DGN; GRIP; HFPR |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Recessing |
| Complete Insert Compatibility | DGN 4003C; DGN 4803C; DGN 5003C; GRIP 4002Y; GRIP 4004Y; GRIP 4020Y; GRIP 476-080Y; GRIP 476-238Y; GRIP 5005Y; GRIP 5008Y; GRIP 5025Y; GRIP 6030Y; GRIP 635-318Y; HFPR 3003; HFPR 3015; HFPR 4004; HFPR 4020; HFPR 5004; HFPR 5025; HFPR 6004; HFPR 6030 |
