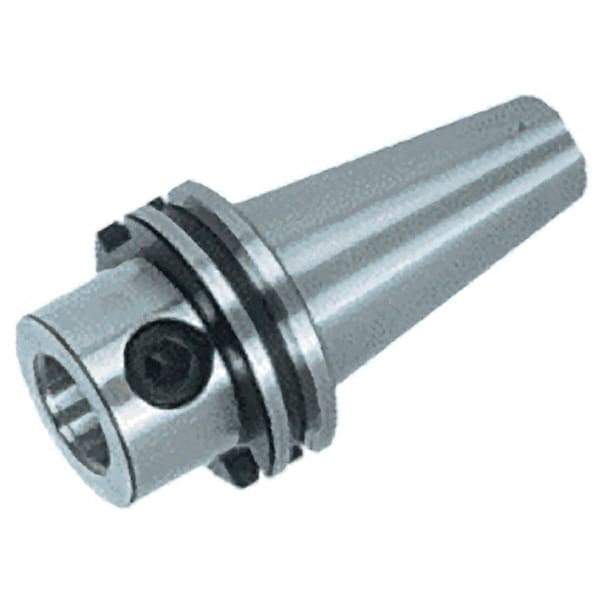

Iscar - DIN69871-40 Outside Taper, CF4 Inside Modular Connection, DIN69871 to Click-Fit Taper Adapter - 44.1mm Projection, 44.5mm Nose Diam, Through Coolant
Item #: 04941886
Brand: Iscar
Model #: 4548020
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | DIN69871 to Click-Fit |
| Outside Taper Size | DIN69871-40 |
| Inside Modular Connection Size | CF4 |
| Projection (Decimal Inch) | 1.7362 |
| Projection (mm) | 44.10 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 1.7520 |
| Nose Diameter (mm) | 44.50 |
| Retention Knob Thread Size | M16 |
