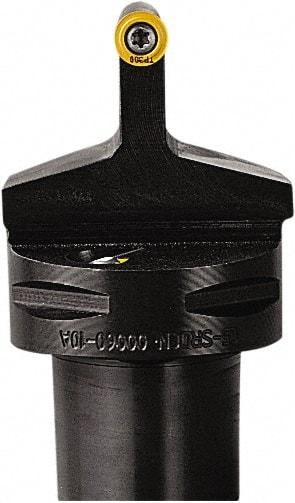

Seco - Neutral Cut, Size C4, RCMT 1204 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 6.1mm Ctr to Cutting Edge, 50.04mm Head Length, Series Seco-Capto
Item #: 04911160
Brand: Seco
Model #: 94192
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | Seco-Capto |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 50.04 |
| Head Length/Projection (Decimal Inch) | 1.9700 |
| Insert Style | RCMT 1204 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 6.10 |
| Center to Cutting Edge (Decimal Inch) | 0.2400 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | 0 |
| Neck Diameter (mm) | 39.88 |
| Neck Diameter (Decimal Inch) | 1.5700 |
| Complete Insert Compatibility | RCMT 1204M0-F1; RCMT 1204M0-F2; RCMT 1204M0-M3 |
