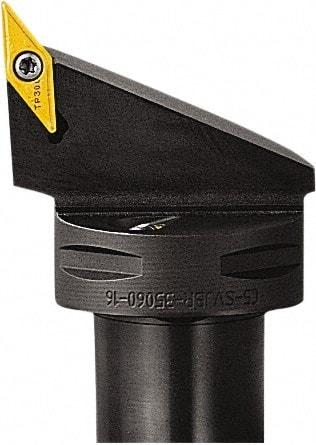

Seco - Right Hand Cut, Size C3, VBMT 21.51 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 22.1mm Ctr to Cutting Edge, 39.88mm Head Length, Series Seco-Capto
Item #: 04910741
Brand: Seco
Model #: 94146
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C3 |
| Series Name | Seco-Capto |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 39.88 |
| Head Length/Projection (Decimal Inch) | 1.5700 |
| Insert Style | VBMT 21.51 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 22.10 |
| Center to Cutting Edge (Decimal Inch) | 0.8700 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | 0 |
| Neck Diameter (mm) | 32.00 |
| Neck Diameter (Decimal Inch) | 1.2600 |
| Complete Insert Compatibility | VBMT 21.51-F1; VBMT 21.51-MF2 |
