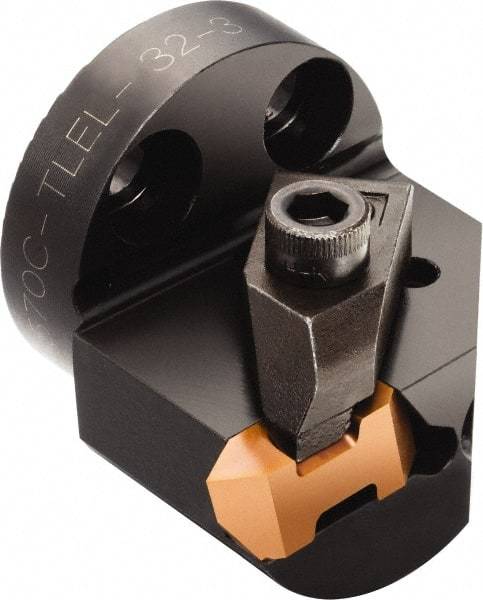

Sandvik Coromant - TLG-3189R Insert, 34mm Head Length, 0.5mm Min Groove Width, Modular Grooving Blade Holder Head - Left Hand Cut, System Size 32, Series Top Lok
Item #: 04851317
Brand: Sandvik Coromant
Model #: 5765034
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 32 |
| Series Name | Top Lok |
| Cutting Direction | Left Hand |
| Modular Head Style | Blade Holder Head |
| Insert Style | TLG-3189R |
| Head Length/Projection (mm) | 34.00 |
| Head Length/Projection (Decimal Inch) | 1.3386 |
| Blade Style Compatibility | 3 |
| Through Coolant | NonThrough Coolant |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8660 |
| Maximum Groove Width (mm) | 4.80 |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Complete Insert Compatibility | TLG-3189R |
| Minimum Groove Width (mm) | 0.50 |
| Minimum Groove Width (Decimal Inch) | 12.7000 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 161.2900 |
