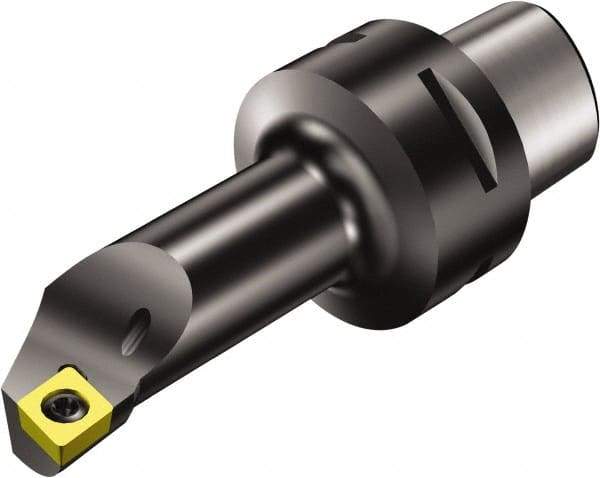

Sandvik Coromant - Right Hand, C4 CCMT 3(2.5)2 Modular Turning and Profiling Cutting Unit Head - Screw and Clamp Holding Method, 1.2598 Inch Hole Diameter, Through Coolant
Item #: 04851135
Brand: Sandvik Coromant
Model #: 5727891
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 90.00 |
| Head Length/Projection (Decimal Inch) | 3.5433 |
| Insert Style | CCMT 3(2.5)2 |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 32.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Center to Cutting Height (mm) | 68.00 |
| Center to Cutting Height (Decimal Inch) | 2.6772 |
| Complete Insert Compatibility | CCMT 09 T3 08 |
