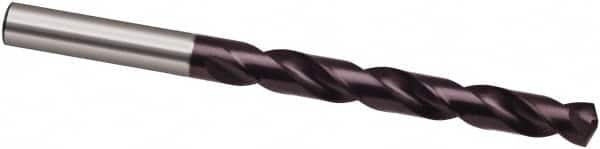

Jobber Length Drill Bit: 0.0626″ Dia, 130 °, Cobalt FIREX Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 2458
Item #: 04820197
Brand: Guhring
Model #: 9024580015900
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.0626 |
| Drill Bit Size (Inch) | 1/16 |
| Drill Bit Material | Cobalt |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | FIREX? |
| Drill Point Angle (Degrees) | 130 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Cone Relief |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.0626 |
| Overall Length (mm) | 43.00 |
| Flute Length (mm) | 20.00 |
| Series | 2458 |
| Tool Application | Self-Centering |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 1.59 |
| Maximum Drilling Depth (Decimal Inch) | 0.6940 |
| Maximum Drilling Depth (mm) | 17.62 |
| Shank Length (mm) | 23.00 |
| Drill Bit Diameter Tolerance | h8 |
| Web Thinning | Web-Thinned |
| Tool Performance | High Performance |
| Standards | DIN 338 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.0500 - 0.1000 |
| Specification Designation | DIN |
