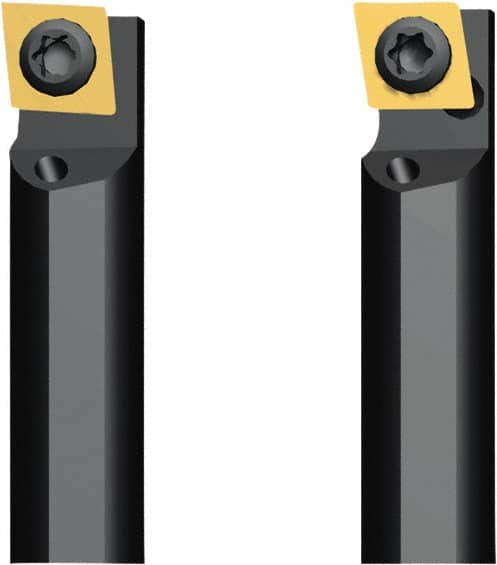

Seco - 8.5mm Min Bore Diam, 80mm OAL, 8mm Shank Diam, A-SCLD Indexable Boring Bar - 11.2mm Max Bore Depth, CDCB 04T0.. Insert, Screw Holding Method
Item #: 04727095
Brand: Seco
Model #: 54692
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLD |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 8.50 |
| Minimum Bore Diameter (Decimal Inch) | 0.3346 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 11.20 |
| Maximum Bore Depth (Decimal Inch) | 0.4409 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | CDCB 04T0.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 95 |
| Center to Cutting Edge (mm) | 4.50 |
| Center to Cutting Edge (Decimal Inch) | 0.1772 |
| Insert Thickness (Decimal Inch) | 0.0380 |
| Insert Inscribed Circle (mm) | 3.97 |
| Insert Inscribed Circle (Decimal Inch) | 0.1563 |
| Rake Angle | 0 |
| Complete Insert Compatibility | CDCB 04T002; CDCB 04T004; CDCB 04T0005 |
| Toolholder Material | Steel |
