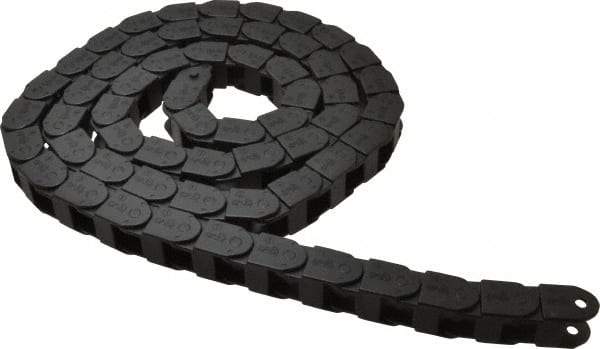

Igus - 6 Ft. Long, Igumid G, Fixed Open Cable and Hose Carrier - 0.59 Inch Inside Width x 0.71 Inch Inside Height, 1.02 Inch Outside Width x 0.91 Inch Outside Height, 1-1/2 Inch Bend Radius
Item #: 04234399
Brand: Igus
Model #: 10-1-038-0 6'
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Access Type | Fixed Open |
| Overall Length (Feet) | 6 |
| Inside Height (Decimal Inch) | 0.7100 |
| Inside Height (mm) | 18 |
| Inside Width (mm) | 15 |
| Inside Width (Decimal Inch) | 0.5900 |
| Outside Height (mm) | 23 |
| Outside Height (Decimal Inch) | 0.9100 |
| Outside Width (mm) | 26 |
| Outside Width (Decimal Inch) | 1.0200 |
| Bend Radius (mm) | 38 |
| Bend Radius (Decimal Inch) | 1-1/2 |
| Number of Sections | 23 |
| Link to Link Pitch (mm) | 30-1/2 |
| Link to Link Pitch (Decimal Inch) | 1.2000 |
| Material | Igumid G |
| Standards Met | VDE 0304 IIC UL 94 HB |
