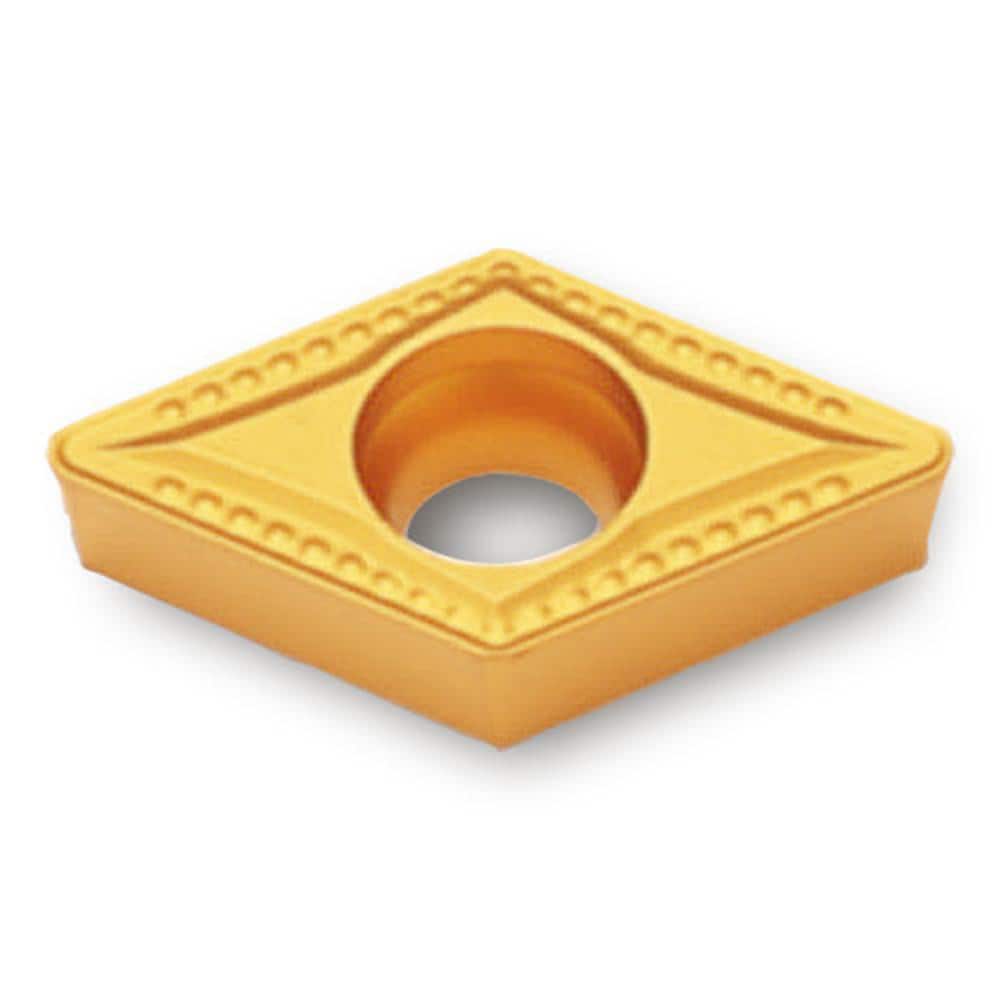

Turning Insert: DCMT32.52MT TT8020, Solid Carbide TiCN Finish, Neutral, 0.4570″ Long, 3/8″ Inscribed Circle, 0.0310″ Corner Radius, 55.0 ° N/A Diamond, Series DCMT
Item #: 04218350
Brand: Ingersoll Cutting Tools
Model #: 5515258
Product Specifications
| Insert Style | DCMT |
| Insert Shape Code | D |
| Insert Size Code | 32.52 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT8020 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 55.0 |
| Relief Angle | 7 |
| Series | DCMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.4570 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | DCMT32.52MTTT8020 |
| Iso Code | DCMT11T308MT TT8020 |
| Chip Breaker | MT |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Coating/Finish | TiCN |
