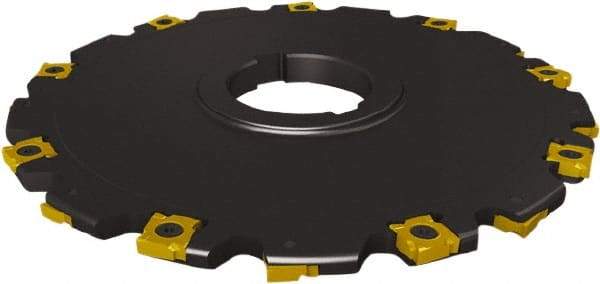

Seco - Arbor Hole Connection, 0.4724" Cutting Width, 1.098" Depth of Cut, 100mm Cutter Diam, 1-1/16" Hole Diam, 5 Tooth Indexable Slotting Cutter - 335.19 Toolholder, SNHQ 1207 Insert
Item #: 04135695
Brand: Seco
Model #: 78374
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 12.00 |
| Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 27.89 |
| Maximum Depth of Cut (Decimal Inch) | 1.0980 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 5 |
| Toolholder Style | 335.19 |
| Series | 335.19 |
| Insert Style | SNHQ 1207 |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Maximum RPM | 6000 |
| Minimum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (mm) | 12.00 |
| Radius | No |
| Rake | Negative |
| Cutter Body Width (mm) | 12.00 |
| Cutter Body Width (Decimal Inch) | 0.4724 |
| Complete Insert Compatibility1 | SNHQ 120702TL4-M07; SNHQ 120702TR4-M07; SNHQ 120704EL4-E05; SNHQ 120704ER4-E05; SNHQ 120704TL4-M07; SNHQ 120704TR4-M07; SNHQ 120708TL4-M07; SNHQ 120708TR4-M07; SNHQ 120712TL4-M07; SNHQ 120712TR4-M07; SNHQ 120716TL4-M07; SNHQ 120716TR4-M07; SNHQ 120720TL4- |
