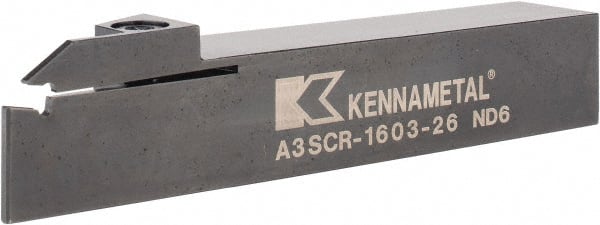

Kennametal - 26mm Max Depth, 2.44" Max Workpc Diam, Right Hand Indexable Cutoff Toolholder
Item #: 04102307
Brand: Kennametal
Model #: 1803446
Product Specifications
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 26.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0236 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.4400 |
| Series | A3 |
| Toolholder Style | A3SC |
| Insert Compatibility | A2030... |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Insert Seat Size | 3 |
| Insert Holding Method | Screw |
| Through Coolant | No |
| Insert Width (Decimal Inch) | 0.1180 |
| Head Height (mm) | 32.00 |
| Head Height (Decimal Inch) | 1.2600 |
| Head Length (mm) | 42.42 |
| Head Length (Decimal Inch) | 1.6700 |
