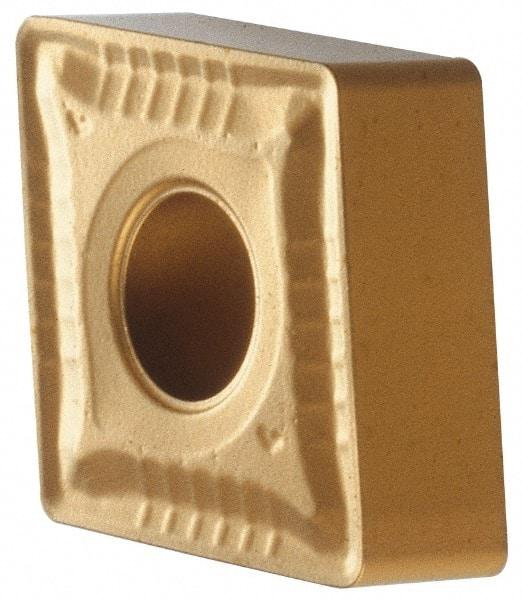

Iscar - CNMG644 NR Grade IC3028 Carbide Turning Insert - TiCN Finish, 80° Diamond, 3/4" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 04095360
Brand: Iscar
Model #: 5591889
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 644 |
| Material | Carbide |
| Length (mm) | 19.30 |
| Length (Decimal Inch) | 0.7598 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | IC3028 |
| Coating | TiCN |
| Material Grade | C2/C3/C5/C6 |
| Chip Breaker | NR |
| Hole Diameter (Decimal Inch) | 0.3130 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Shape | Diamond |
