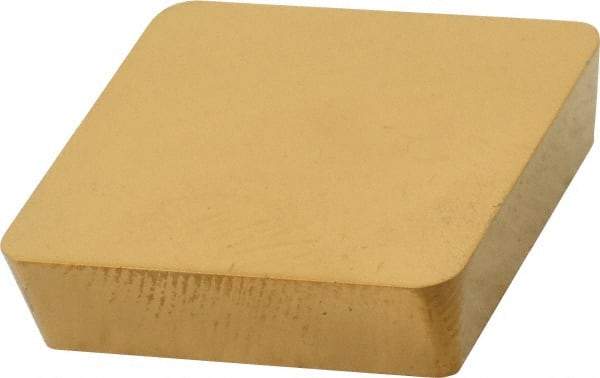

Interstate - SPG634 Grade TCN55 Carbide Turning Insert - TiC/TiN Finish, 90° Square, 3/4" Inscr Circle, 3/16" Thick, 1/16" Corner Radius
Item #: 04056453
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SPG |
| Insert Size | 634 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Inscribed Circle (Inch) | 3/4 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | TCN55 |
| Coating | TiC/TiN |
| Material Grade | C5/C6/C7 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Primary Workpiece Material | P; M |
| Included Angle | 90 |
| Insert Holding Method | Clamp |
| Shape | Square |
