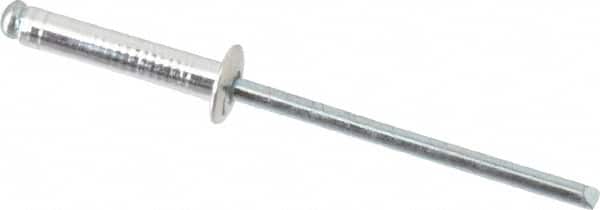

Marson - Button Head Aluminum Open End Blind Rivet - Steel Mandrel, 0.376" to 1/2" Grip, 1/4" Head Diam, 0.129" to 0.133" Hole Diam, 0.65" Length Under Head, 1/8" Body Diam
Item #: 04045662
Brand: Marson
Model #: 44322
Exact Tooling IR#: 04
Features and Benefits
Open end rivets are used when disassembly is difficult or not required.
Button head fasteners have cylindrical heads with curved tops and flat bearing surfaces. They slightly protrude out of the workpiece and are used for aesthetic purposes.
Aluminum has a high strength-to-weight ratio and is wear resistant, nonmagnetic and conductive. It is easier to form and machine than steel and is naturally noncorrosive.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Open End |
| Head Type | Button |
| Rivet Material | Aluminum |
| Mandrel Material | Steel |
| Minimum Grip (Decimal Inch) | 0.3760 |
| Maximum Grip (Decimal Inch) | 0.5000 |
| Maximum Grip (Inch) | 1/2 |
| Head Diameter (Decimal Inch) | 0.2500 |
| Head Diameter (Inch) | 1/4 |
| Minimum Hole Diameter (Decimal Inch) | 0.1290 |
| Maximum Hole Diameter (Decimal Inch) | 0.1330 |
| Drill Size (Wire) | #30 |
| Length Under Head (Decimal Inch) | 0.6500 |
| Body Diameter (Decimal Inch) | 0.1250 |
| Body Diameter (Inch) | 1/8 |
| Rivet Finish/Coating | Painted |
| Head Height (Decimal Inch) | 0.0400 |
