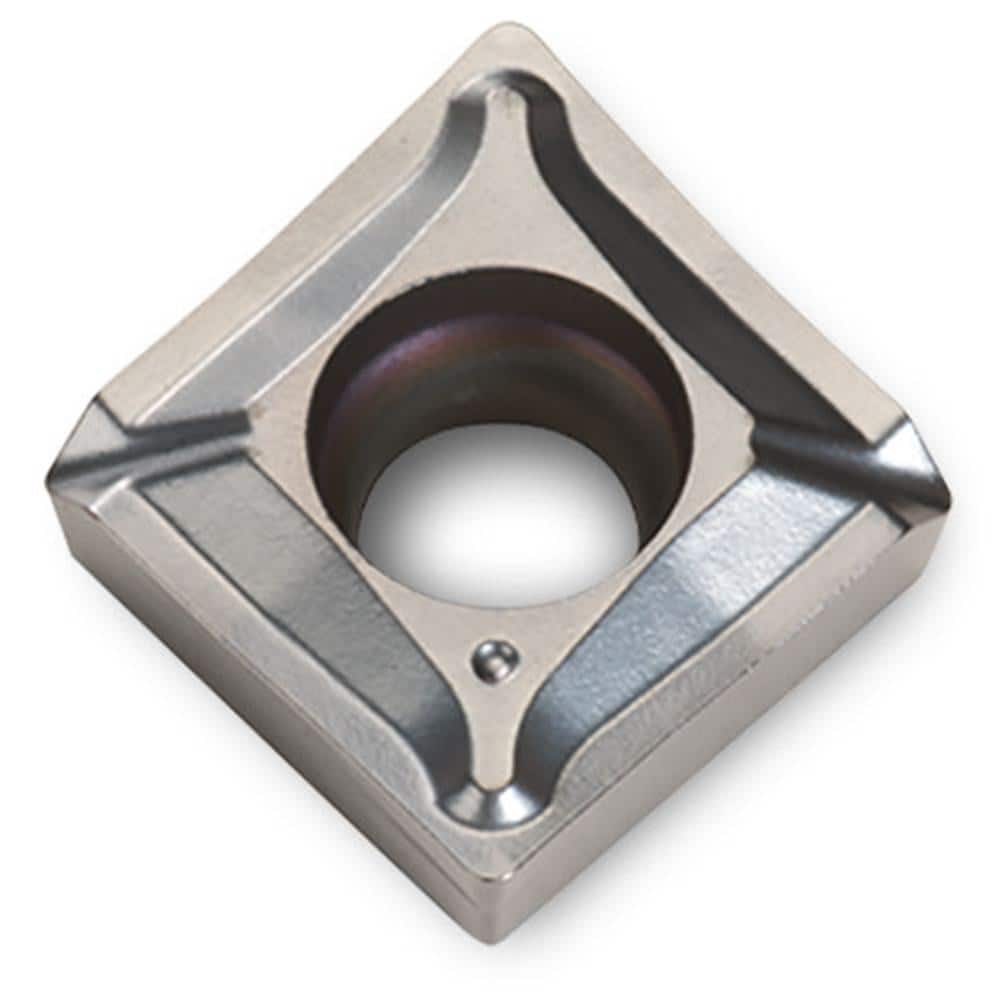

XCMT070304TC TT9030 Carbide Turning Insert 1/8″ Thick, 83.5° Diamond
Item #: 03797693
Brand: Ingersoll Cutting Tools
Model #: 5516546
Product Specifications
| Insert Style | XCMT |
| Insert Shape Code | X |
| Insert Size Code | 070304 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TT9030 |
| Inscribed Circle (Decimal Inch) | 0.2950 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 83.5 |
| Relief Angle | 7 |
| Series | XCMT |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.2950 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | XCMT070304TCTT9030 |
| Iso Code | XCMT070304TC TT9030 |
| Chip Breaker | TC |
| Coating/Finish | TiAlN |
