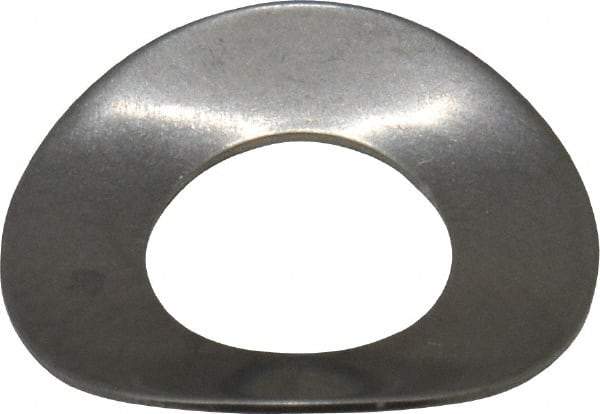

Gardner Spring - 1/4" Bolt, 0.265" ID, Grade 301 Stainless Steel, Curved Disc Spring - 0.551" OD, 0.06" High, 0.015" Thick
Item #: 03714821
Brand: Gardner Spring
Model #: MU250-0145-S
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Bolt Size (Inch) | 1/4 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.2650 |
| Material | Stainless Steel |
| Material Grade | 301 |
| Outside Diameter (Decimal Inch) | 0.5510 |
| Thickness (Decimal Inch) | 0.0150 |
| Overall Height (Decimal Inch) | 0.0600 |
| Deflection (Decimal Inch) | 0.0182 |
| Deflection to Flat (Decimal Inch) | 0.0180 |
| Load at Deflection (Lb.) | 8.66 |
