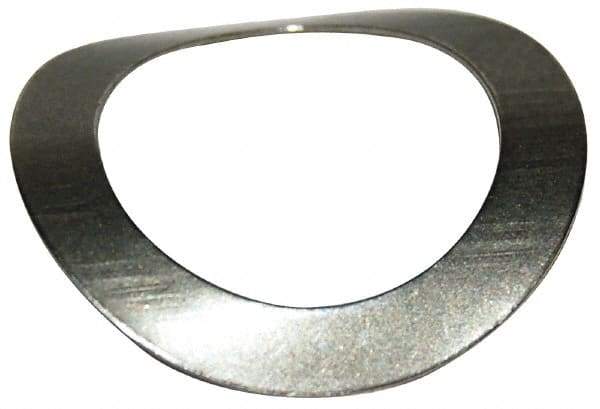

Gardner Spring - #8 Bolt, 0.174" ID, Grade 301 Stainless Steel, Curved Disc Spring - 0.322" OD, 0.064" High, 0.005" Thick
Item #: 03714730
Brand: Gardner Spring
Model #: MU164-0050-S
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Screw Size (Wire) | #8 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.1740 |
| Material | Stainless Steel |
| Material Grade | 301 |
| Outside Diameter (Decimal Inch) | 0.3220 |
| Thickness (Decimal Inch) | 0.0050 |
| Overall Height (Decimal Inch) | 0.0640 |
| Deflection (Decimal Inch) | 0.0236 |
| Deflection to Flat (Decimal Inch) | 0.0340 |
| Load at Deflection (Lb.) | 1.50 |
