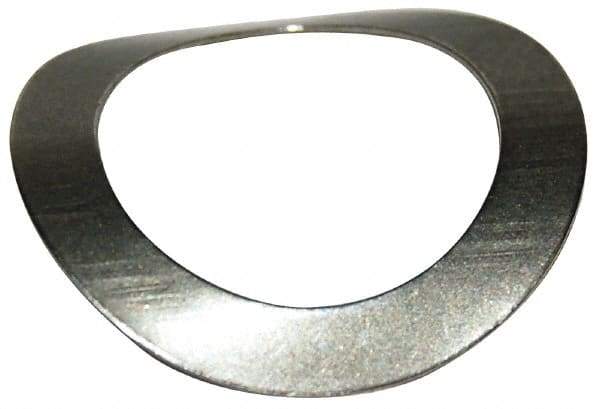

Gardner Spring - #10 Bolt, 0.203" ID, Grade 1074 Steel, Curved Disc Spring - 0.322" OD, 0.053" High, 0.005" Thick
Item #: 03714466
Brand: Gardner Spring
Model #: MU190-0050
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Screw Size (Wire) | #10 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.2030 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.3220 |
| Thickness (Decimal Inch) | 0.0050 |
| Overall Height (Decimal Inch) | 0.0530 |
| Deflection (Decimal Inch) | 0.0192 |
| Deflection to Flat (Decimal Inch) | 0.0260 |
| Load at Deflection (Lb.) | 1.12 |
