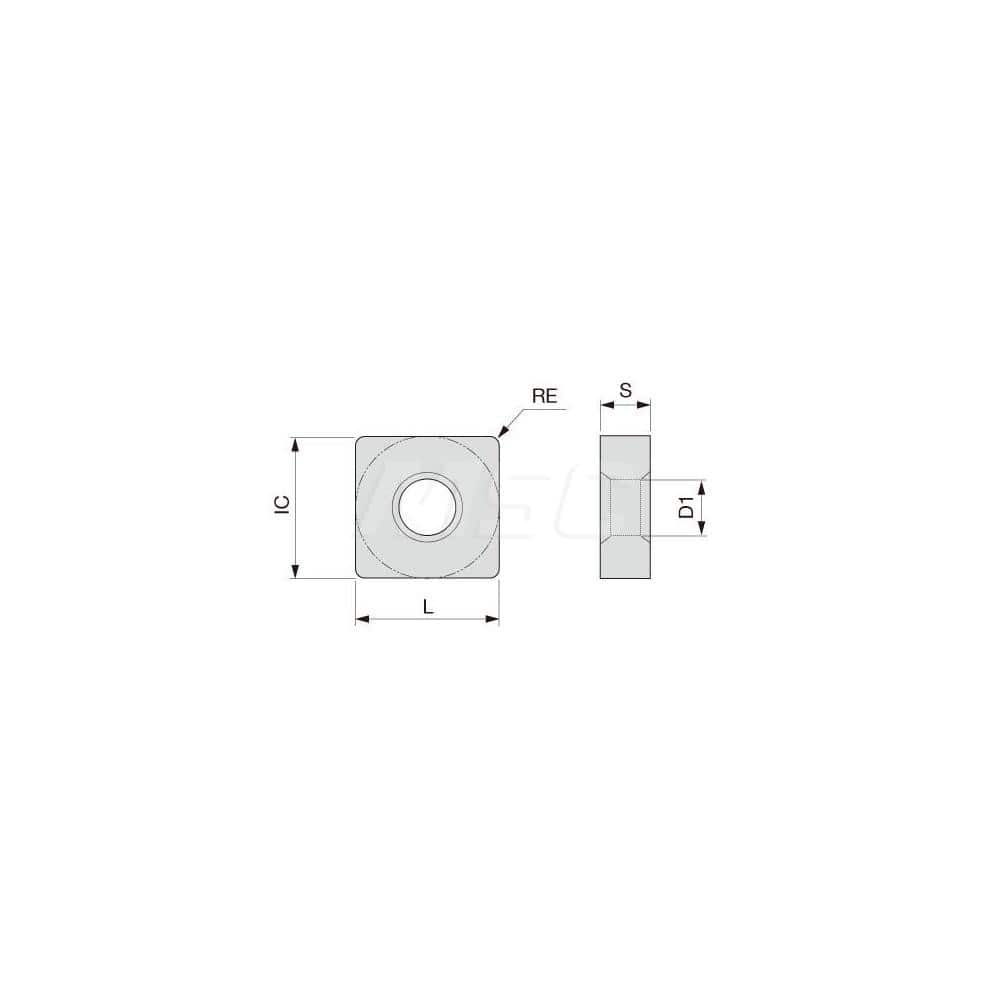

Turning Insert: SNMG544SH AH645, Solid Carbide TiAlN Finish, Neutral, 5/8″ Inscribed Circle, 0.0630″ Corner Radius, 90.0 ° N/A Square, Series SNMG
Item #: 03664851
Brand: Tungaloy
Model #: 6827601
Product Specifications
| Insert Style | SNMG |
| Insert Size Code | 544 |
| Insert Shape | Square |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AH645 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Insert Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Included Angle | 90.0 |
| Relief Angle | 0 |
| Series | SNMG |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 8 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Ansi Code | SNMG544SHAH645 |
| Iso Code | SNMG150616-SH AH645 |
| Chip Breaker | SH |
| Coating/Finish | TiAlN |
