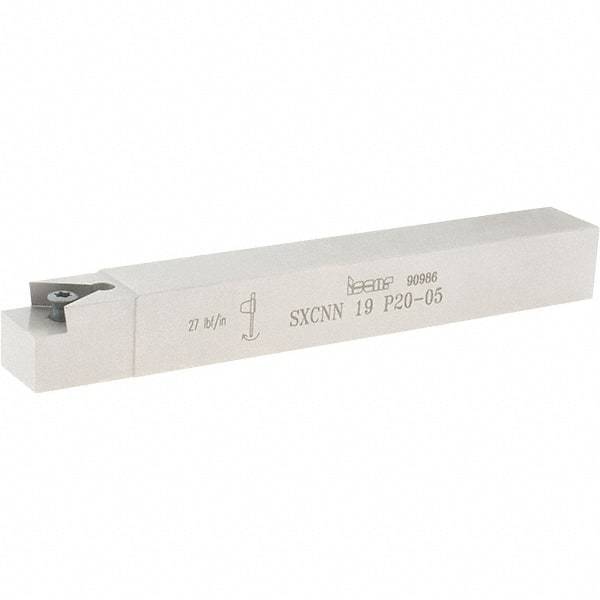

Iscar - External, SXCN, 90° Lead Angle, XNUW 2006 Compatible, Indexable Profiling Toolholder - 3/4 Inch Shank Height, 3/4 Inch Shank Width, 6 Inch Overall Length, Steel
Item #: 03576667
Brand: Iscar
Model #: 2800977
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Neutral |
| Rake | Neutral |
| Insert Compatibility | XNUW 2006 |
| Toolholder Style | SXCN |
| Series | V-Lock |
| Toolholder Material | Steel |
| Through Coolant | No |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Holding Method | Screw |
| Rake Angle | 0 |
| Lead Angle | 90 |
| Maximum Hole Depth (Decimal Inch) | 0.9500 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | XNUW 2006-05 |
