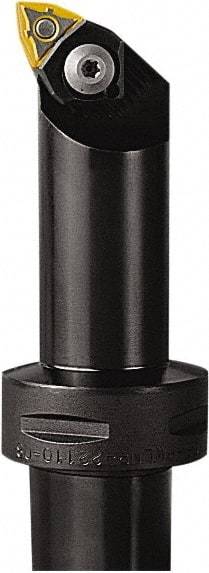

Seco - Left Hand Cut, Size C6, WN.. 0804 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 175mm Head Length, Series Seco-Capto
Item #: 03530987
Brand: Seco
Model #: 72038
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | Seco-Capto |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 175.00 |
| Head Length/Projection (Decimal Inch) | 6.8898 |
| Insert Style | WN.. 0804 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Pin & Wedge |
| Through Coolant | NonThrough Coolant |
| Axial Rake Angle | -5 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.4803 |
| Complete Insert Compatibility | WN.. 0804.. |
