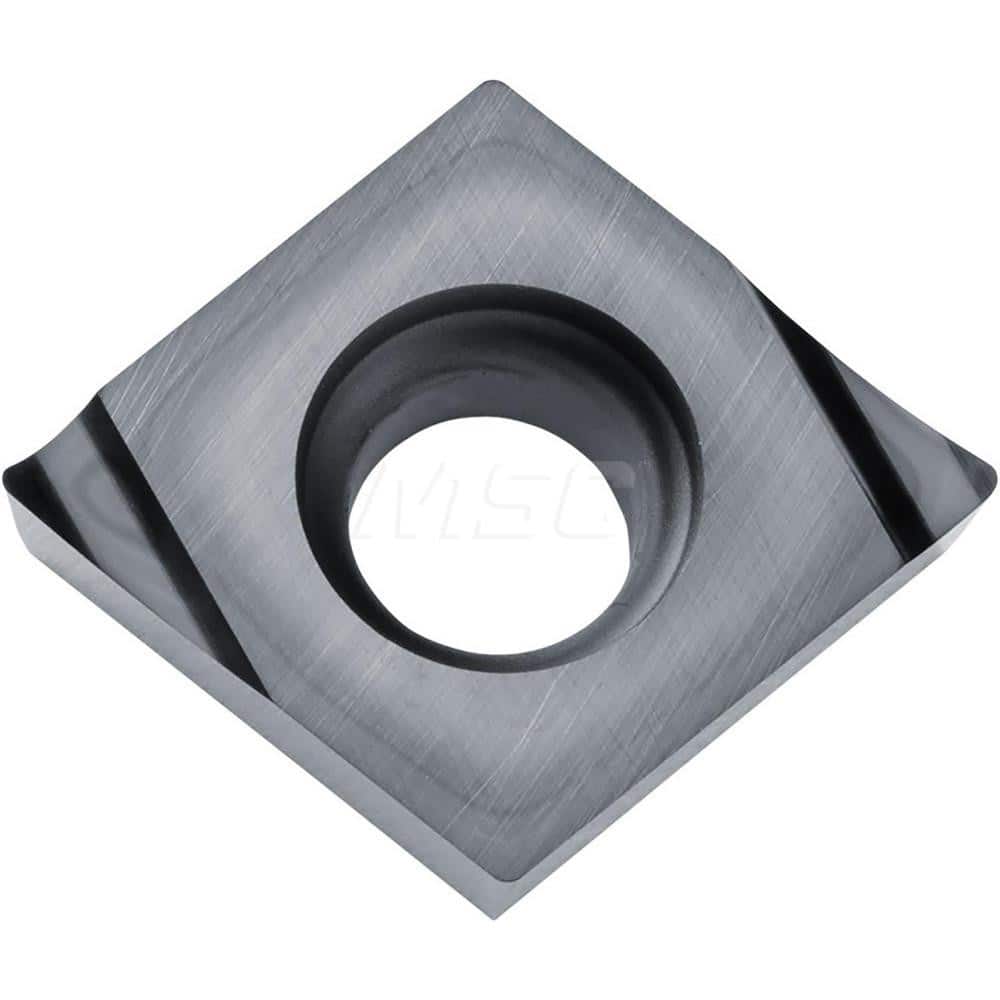

Kyocera CCGT 3251RA3 KW10 Grade Uncoated Carbide, 7 Degree, Diamond, Positive Rake Angle, Right-Hand Turning Insert for Light Interruption and Finishing-Medium in (N) Non-Ferrous Metals, (S) Titanium Alloy and (K) Gray Cast Iron
Item #: 03485844
Brand: Kyocera
Model #: TWE04512
Product Specifications
| Insert Style | CCGT |
| Insert Shape Code | C |
| Insert Size Code | 3251 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KW10 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 3/8 |
| Insert Hand | Right Hand |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Rake | Positive |
| Primary Workpiece Material | S; N |
| Secondary Workpiece Material | K |
| Iso Code | CCGT09T304R-A3 |
| Manufacturers Catalog Number | CCGT3251RA3KW10 |
| Chip Breaker | A3 |
| Style | CCGT |
| Full Radius | No |
| Coating/Finish | WC; Co |
| Multi-Use Application | External Turning; Facing; Sub-Spindle; Internal Facing; Boring |
