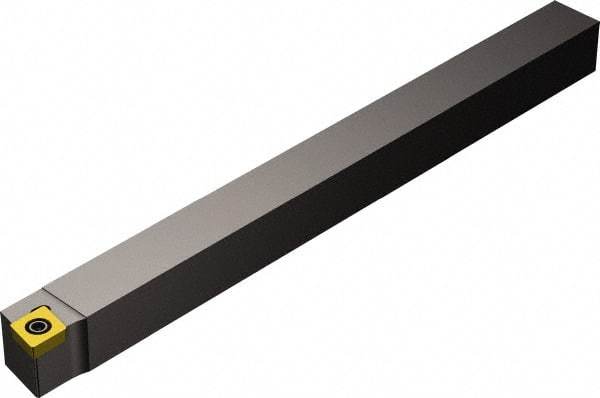

Sandvik Coromant - SCACR, Right Hand Cut, 0° Lead Angle, 1/2" Shank Height x 1/2" Shank Width, Neutral Rake Indexable Turning Toolholder - 5" OAL, CCMT 32.52 Insert Compatibility, Series CoroTurn 107
Item #: 03429115
Brand: Sandvik Coromant
Model #: 5749052
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SCACR |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Lead Angle | 0 |
| Shank Width (Inch) | 1/2 |
| Shank Width (mm) | 12.70 |
| Shank Width (Decimal Inch) | 0.5000 |
| Shank Height (Inch) | 1/2 |
| Shank Height (mm) | 12.70 |
| Shank Height (Decimal Inch) | 0.5000 |
| Overall Length (Inch) | 5 |
| Overall Length (mm) | 127.00 |
| Overall Length (Decimal Inch) | 5.0000 |
| Insert Compatibility | CCMT 32.52 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Facing |
| Insert Holding Method | Screw Clamping |
| Back of Bar to Cutting Edge (mm) | 127.00 |
| Back of Bar to Cutting Edge (Inch) | 5 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.0000 |
| Head Length (mm) | 12.70 |
| Head Length (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Width (Inch) | 3/8 |
| Insert Width (Decimal Inch) | 0.3750 |
| Toolholder Material | Steel |
