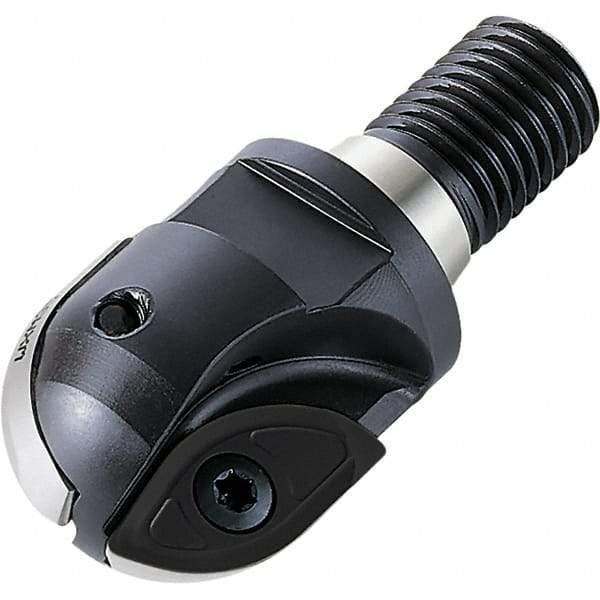

Walter - 25.4mm Cut Diam, 20mm Max Depth of Cut, 22mm Shank Diam, 58mm OAL, Indexable Ball Nose End Mill - 29,500 Max RPM
Item #: 03416021
Brand: Walter
Model #: 5026702
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.4 |
| Cutting Diameter (Decimal Inch) | 1.000 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7870 |
| Shank Diameter (mm) | 22.00 |
| Shank Diameter (Decimal Inch) | 0.866 |
| Series | F2339-UT-FORMA |
| Overall Length (mm) | 58.00 |
| Overall Length (Decimal Inch) | 2.2830 |
| Toolholder Material | Steel |
| Maximum RPM | 29500 |
