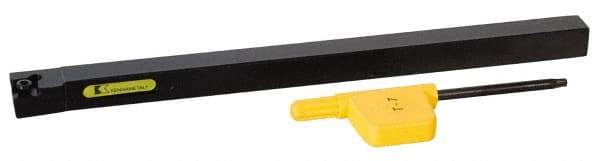

Kennametal - SCLC, Left Hand Cut, 5° Lead Angle, 25mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, CC... Insert Compatibility, Series Screw-On
Item #: 03331675
Brand: Kennametal
Model #: 1318353
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | SCLC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | Screw-On |
| Lead Angle | 5 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | CC... |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Head Length (mm) | 16.00 |
| Head Length (Decimal Inch) | 0.6299 |
| Toolholder Material | Steel |
